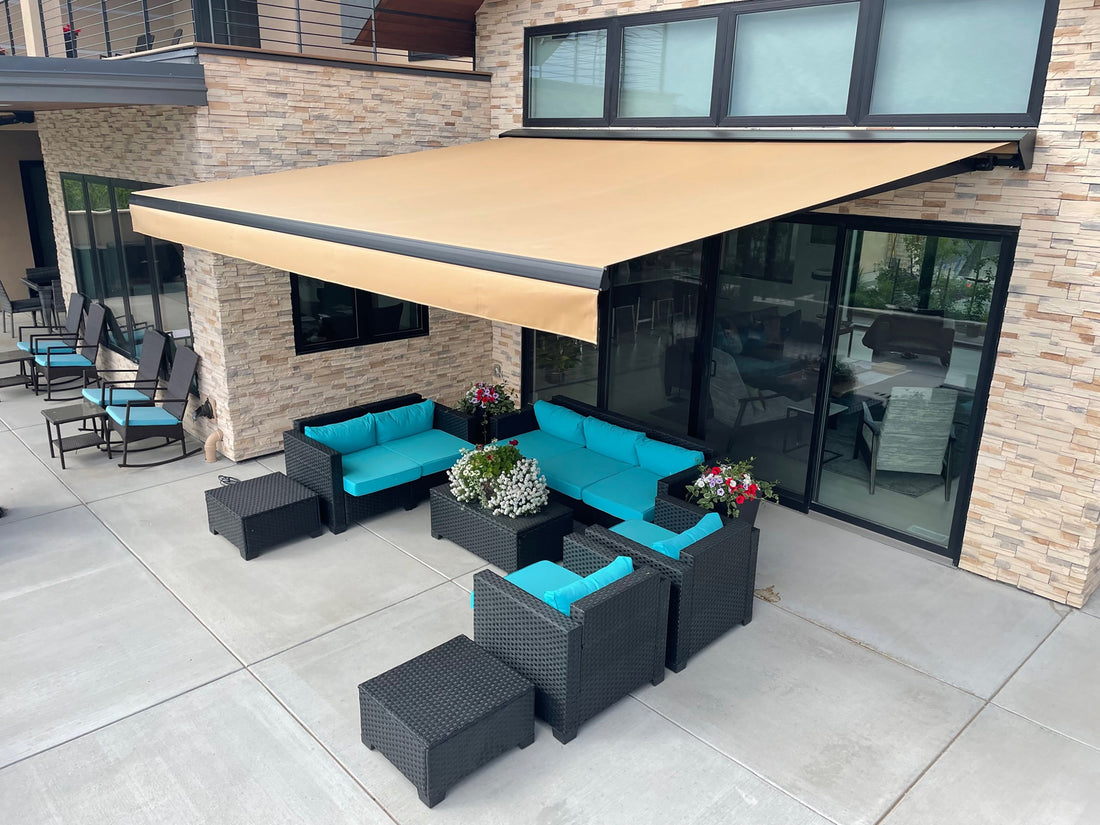

A DIY Awning Weekend, Hour by Hour

Most installation content is either a parts list or a thirty-second time-lapse set to music. Neither one tells you what the day actually feels like, or where it slows down, or when you get to stop and admire your own work. So here is the honest version of a first awning install — two people, a normal set of tools, and no previous experience whatsoever.

Timings are typical for a first install by two people. Experienced installers move considerably faster, and a difficult mounting surface can add half a day.

Friday evening: open the box

Do this the night before. Not on the morning of, and definitely not while standing on a ladder.
Lay every component out on the garage floor or the lawn and check it against the parts list. Find the brackets, count the fasteners that did come with it, and confirm the unit is the size you ordered. If anything is damaged or missing, photograph it now — before any of it goes on the wall. This is also when you discover whether you need a run to the hardware shop, and Friday evening is a much better time to discover that than nine on Saturday morning.

Then read the installation guide. All of it, ideally out loud to whoever is helping, because two people who have both read it work about twice as fast as one person who has. Twenty minutes, and it is the best twenty minutes you will spend on this. You are not memorizing steps — you are building a picture of the sequence so that tomorrow you are confirming things instead of deciding them.

Last Friday job: work out what is behind your wall and buy the right fasteners. Standard siding takes 3½-inch deck screws reaching real framing. Stucco, brick or concrete takes 3¼-inch masonry screws, predrilled with a hammer drill and masonry bits. Nothing is included in the box, because nothing generic would be correct.

Saturday, 8am: find your structure

Coffee first. Then marking out. Find the framing, mark it, and check it a second way — a stud finder plus a small test hole, or a stud finder plus a tape measure working off a stud you already know. Two methods agreeing is what you are after here.

Then decide your height and mark a level line. The six-foot level earns its place here; a torpedo level is not adequate over ten feet of bracket spacing. Measure down from the line at both ends to confirm it is where you want it, and check headroom under where the front bar will sit when extended.

This is where the itch to start drilling is strongest, and also where being slightly off costs the most. A quarter-inch out of level over twelve feet extends visibly crooked, and the fabric will drift toward the low end for the rest of its life. Ten extra minutes with the level here saves you looking at a crooked awning every summer.

Saturday, 9:30am: set the brackets

Predrill. Mount. Check level again after each bracket rather than at the end, because a bracket that is slightly proud is fixable in the next two minutes and much less fixable once the unit is hanging off it.

The first bracket will take about three times as long as the last one. Nothing is wrong — that is just the learning curve, and it flattens fast. By the third one you will feel like you have done this before.

Saturday, 11am: the lift

Here is the part everyone underestimates, and also the part everyone remembers. The unit is long, heavy, awkwardly balanced, and has to go up onto the brackets while staying level. Two people minimum, three if it is wide or the mount is high. Ladders at both ends, set before anybody picks anything up, and decide out loud who is counting to three.

Slow and talkative beats fast and silent. This is the one moment of the day where enthusiasm is not the thing you need.

Once it is seated, fasten it properly before either of you steps off a ladder. Then caulk every penetration — every single one, including the one you are sure is fine. Water getting behind siding through an unsealed hole is the only mistake on this list that costs real money, and it waits about two years before telling you about it.

Saturday, 1pm: first extension

Lunch first — you have earned it. Then extend it partway, not all the way, and watch the fabric. It should roll evenly off the tube with no drift toward either end, and the front bar should sit parallel to the house.

If it is tracking to one side, stop and check your level. Almost every fabric-tracking complaint traces back to a mounting that was not quite level, and it is far easier to address now than in August.

Then run it all the way out, stand underneath it, and look at where the shade lands. This is the moment the project stops being a job and starts being a patio, and it is worth standing there a minute before you go back to tidying up. It is also when most people find out that the projection number they agonized over was exactly the right thing to agonize over.

Saturday afternoon: the part nobody films

If you went motorized, this is when the motor gets its power and the remote gets programmed. Setting the travel limits is fiddly rather than difficult — it is a sequence of button presses and short pauses, and it works on the second attempt considerably more often than the first. The guide covers it. If the motor does not respond at all, the fix is usually a power cycle in a specific pattern rather than anything being broken.

If the electrical needs a new circuit rather than an existing outlet, this is the piece to hand to an electrician. Two hours of their time, and you still bought the awning direct.

Saturday evening: sit under it

Put the tools away, sweep up the drill shavings, and then eat dinner out there. This is the best part of the whole project, and it doubles as a real final inspection — you notice things sitting under an awning at seven in the evening that you never spot from a ladder at eleven in the morning. Whoever helped you gets the good chair.

Retract it before bed. Get into the habit on day one.

Sunday: the day you probably do not need

Most two-person installs finish on Saturday. Sunday is the buffer, and what it typically absorbs is one of three things: a hardware shop run for a fastener you did not anticipate, a mounting surface that needed blocking added, or a motor that wanted a second go at its limits.

Keeping Sunday clear is what turns a tight day into an easy one. The installs that go badly are nearly always the ones squeezed into the only free afternoon of the month.

What would have made it easier

• Reading the guide before ordering rather than after delivery. Some people read it and decide to hire a contractor — that is not the guide failing, that is the guide working.
• Buying the fasteners on Friday.
• Three ladders instead of two.
• Starting at eight rather than eleven. Every hour of daylight you give away comes off the end of the day, which is exactly when you want the pressure off.
• Knowing the tech support number before needing it. Weekdays eight to five Eastern, with an after-hours line for exactly the Saturday afternoon described above.
