How to Measure for a Retractable Awning
Share

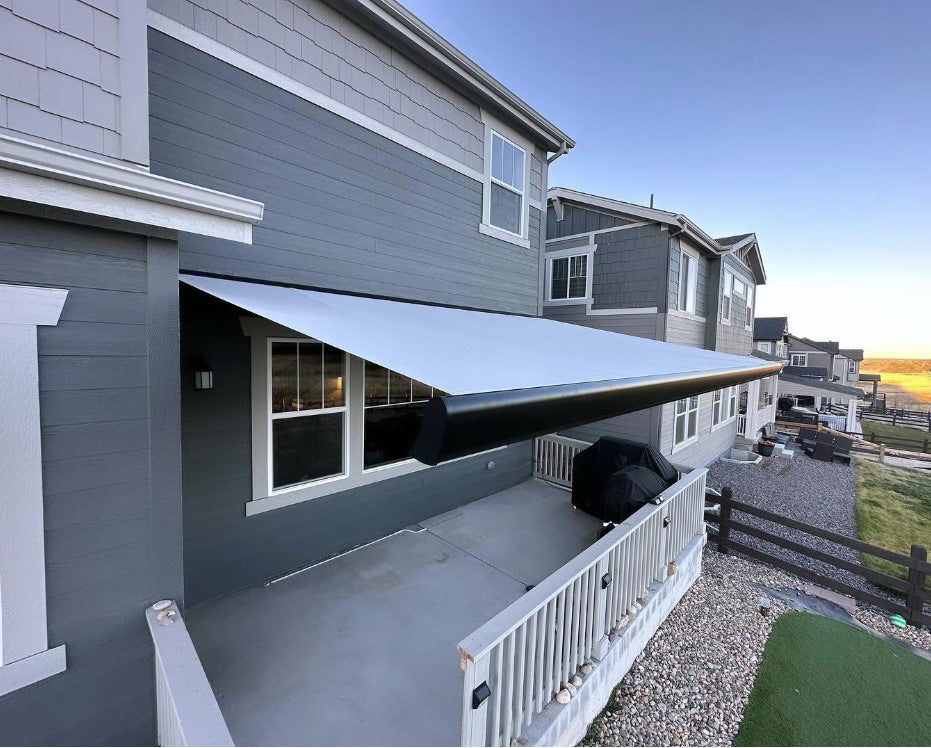

How do you measure for a retractable awning?
Measure five things, in this order: the clear mounting width at bracket height, the mounting height above the patio, the projection you need, the clearance through the awning's full travel, and the structure behind the wall. Record everything in inches, write it down as you go, and never round to a convenient number.
A custom awning gets built from the numbers you send. There is no fudge factor waiting at the far end, which sounds intimidating and really is not — it just means this hour is the one that counts. Take it slowly, write everything down, and the rest of the project is downhill.
Tools, and one thing that matters more than tools
A reliable tape, a pencil, a level, a ladder, and a rough sketch of the elevation. Nothing exotic.
The thing that matters more than any of it: somebody to hold the other end of the tape. Long measurements taken alone are less safe and less accurate, and the gap between a tape held taut by two people and one sagging off a nail is exactly the error that turns up on installation day. Rope in whoever is doing this project with you — this is the easy, pleasant part, and it is a lot more fun than it sounds on paper.
Photograph the whole wall, then take close-ups of everything near where the awning will go — trim, outlets, lights, downspouts, soffits, roof transitions, vents. Those photos are worth their weight later, both when you are reviewing your own numbers and if you need to ask a technical question. Describing a roofline over the phone is difficult; sending a photo is not.
1. Measure the usable mounting width
Measure the clear horizontal run where the awning can actually attach — and measure it at the height the brackets will sit, not at ground level. Walls are not uniform. A downspout that clears at waist height may be directly in the bracket line at nine feet.
Note every obstacle and record how far it sits from a fixed reference point — a building corner, a door frame, something that is not going to move. “About three feet from the window” feels like plenty of information while you are standing there, and never is by the time you are ordering.
The distinction people missThe awning width is the overall unit width, not the fabric width. The cassette, end caps and hardware all sit within that overall dimension. Confirm the whole assembly fits without crowding trim, roof returns, pipes or fixtures — wider is only useful when the mounting surface and the surroundings actually support it. |
2. Confirm mounting height and clearance
Measure from the patio or deck surface up to the proposed mounting line. Then — and this is the part that gets skipped — trace the path the awning will take as it opens.
The front bar does not stay level with the mounting line. Awnings are pitched so water runs off, which means the leading edge sits lower than the back, and how much lower depends on the pitch and the projection you choose. A generous mounting height can still produce a front bar that people duck under. Check the model drawing for the figures rather than assuming.
Then walk the space and look for everything the arms and front bar could meet through their full travel: door swing, tall windows, railings, stairs, changes in grade, light fixtures, a grill lid that opens upward.
3. Choose a projection that fits the patio
Measure outward from the wall to the far edge of the area you want shaded, then compare that against the standard projections offered for your model — they come in fixed increments, so the decision is which increment covers you.
Remember that projection is not the same as shadow length. The shade lands close to the house at midday and slides outward as the afternoon goes on, so the shadow is almost never sitting exactly where the awning ends.
The best twenty minutes you will spendRun a line of removable tape across the patio where the front edge will land. Then just live with it for an afternoon. Open the doors, walk your usual route, sit at the table with a coffee, see where the grill ends up. Kids and dogs will test it for you without being asked. You are checking one thing: does this make the space better without putting something new in the way. A strip of tape answers that before the order goes in, which is the only time the answer costs nothing. |
4. Identify the structure behind the finish
The visible exterior tells you nothing about where an awning can safely attach. Locate the actual structure — studs, headers, rafters, trusses, blocking, or sound masonry, whichever applies to your building — measure their positions, and compare them against the bracket spacing in the installation instructions.
Do not treat vinyl siding, veneer, foam, stucco finish or fascia covering as structural support. Brick veneer in particular looks like the most solid thing on the house and is a facing hung off the structure behind it.
If the framing does not line up with where the brackets need to go, blocking gets added behind the surface. That is a normal fix and a normal cost — it is only a headache when you find out about it on installation day. And if you cannot work out what is back there yourself, have somebody look before you order rather than after. No shame in it; plenty of houses are genuinely hard to read from the outside.
While you are at it, note what fasteners the surface will need, since they are not supplied: standard siding typically takes 3½-inch deck screws reaching framing, and stucco, brick, stone or concrete takes 3¼-inch masonry screws predrilled with a hammer drill and masonry bits.
5. Do a final site check before ordering
Read your sketch back, left to right and top to bottom, and confirm each of these:
- Overall width, and that every obstacle is dimensioned from the same fixed reference
- Mounting height, and the resulting front-bar height at your chosen projection
- Projection, checked against the increments your model offers
- Bracket locations against real structure
- Power access and cord route if the unit is motorized
- That all your measurements refer to the same reference points — mixed references are the classic source of a number that looks right and is not
Then check it all against the measuring guide for the exact model you are buying, because dimensions and mounting requirements shift from model to model. Measure twice, review once, and you have spent an afternoon. Find the conflict on installation day instead and it costs a good deal more than an afternoon.
