Ordering Instructions for the EdgeLock 4000 and 5000

Hardware Colors

All visible aluminum components–including the housing/cassette, sidetracks, and hem bar–are powder-coated. Choose from the available standard and premium finishes to match your exterior design.

  • Matte White

  • Matte Bronze

  • Matte Sand

  • Matte Black

  • Gloss White

Mounting

When selecting a screen, it’s important to understand the difference between surface mounting and inside/recessed mounting. Surface-mounted screens attach directly to the exterior wall above or around your opening. This method is ideal when you want the screen to fully cover a window or door and allows for easy installation of sidetracks. Surface mounting also provides flexibility for adjusting the unit to clear obstacles like trim, sills, or decorative features.

Inside or recessed mounting, on the other hand, positions the screen within the frame or opening itself. This approach is best when you want a clean, integrated look, with the screen fitting snugly inside the existing structure. Recessed mounting can be more precise because the screen is guided by the opening’s framework, but it requires accurate measurements to ensure proper clearance for smooth operation.

Both methods provide effective shade, privacy, or insect protection, so the choice comes down to whether you prefer a visible, adjustable installation (surface mount) or a sleek, built-in appearance (inside mount).

Additional Hardware

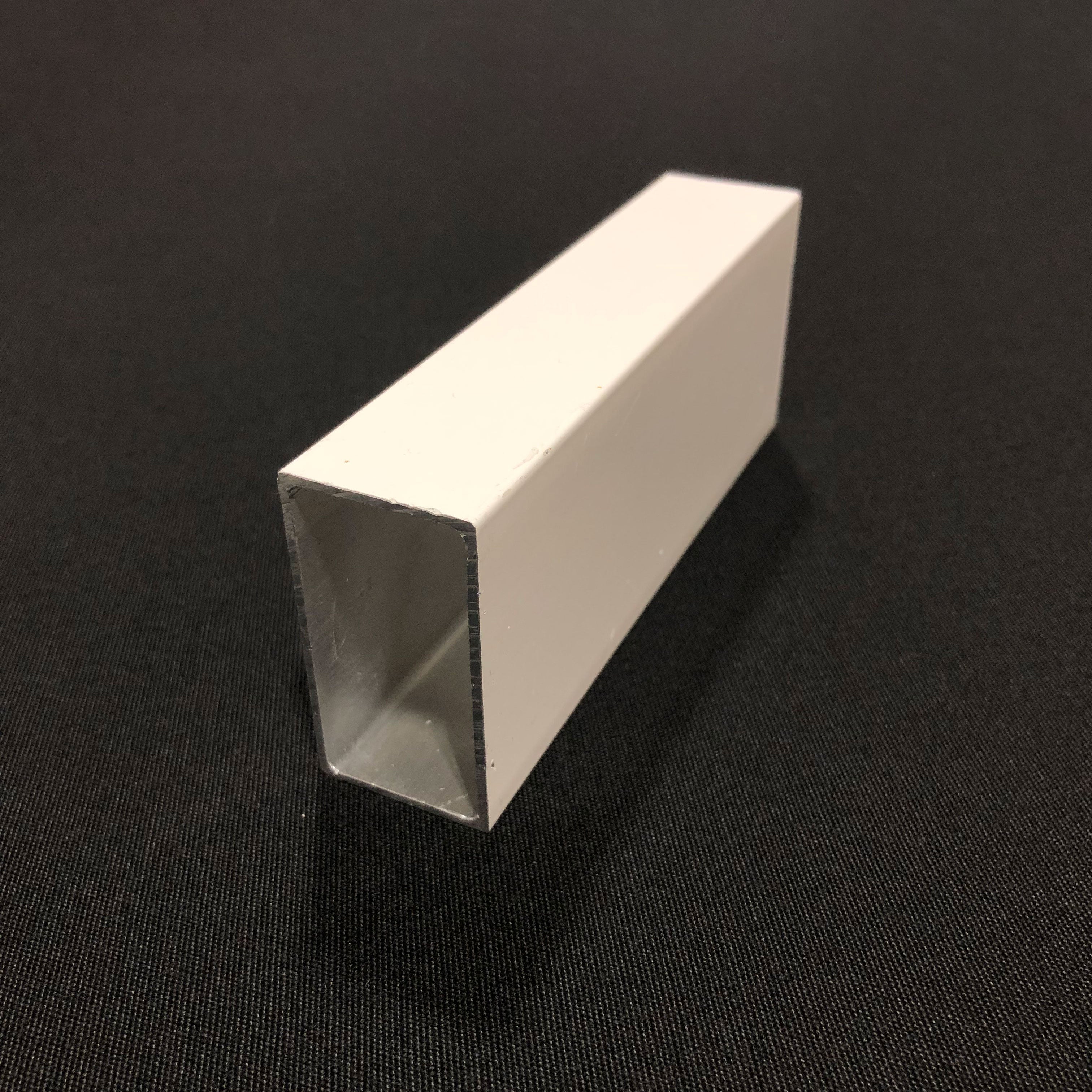

  • Fur Out Strips

    For Surface Mount

    These are used to build the screen unit out and away from the mounting surface (like a wall or window frame).

    • Description: Color-matching, rectangular aluminum extrusions measuring 2" x 1".
    • Purpose: To clear obstacles on the mounting surface, such as door handles or decorative trim.
    • Installation: They are installed first on the mounting surface. The 2" width matches the track width.
    • Key Detail (Gap): Using these strips will create a gap at the top, along the back of the Cassette Housing. This gap is equal to the total unit width less 4". You must either order extra material to fill this gap or leave it open.

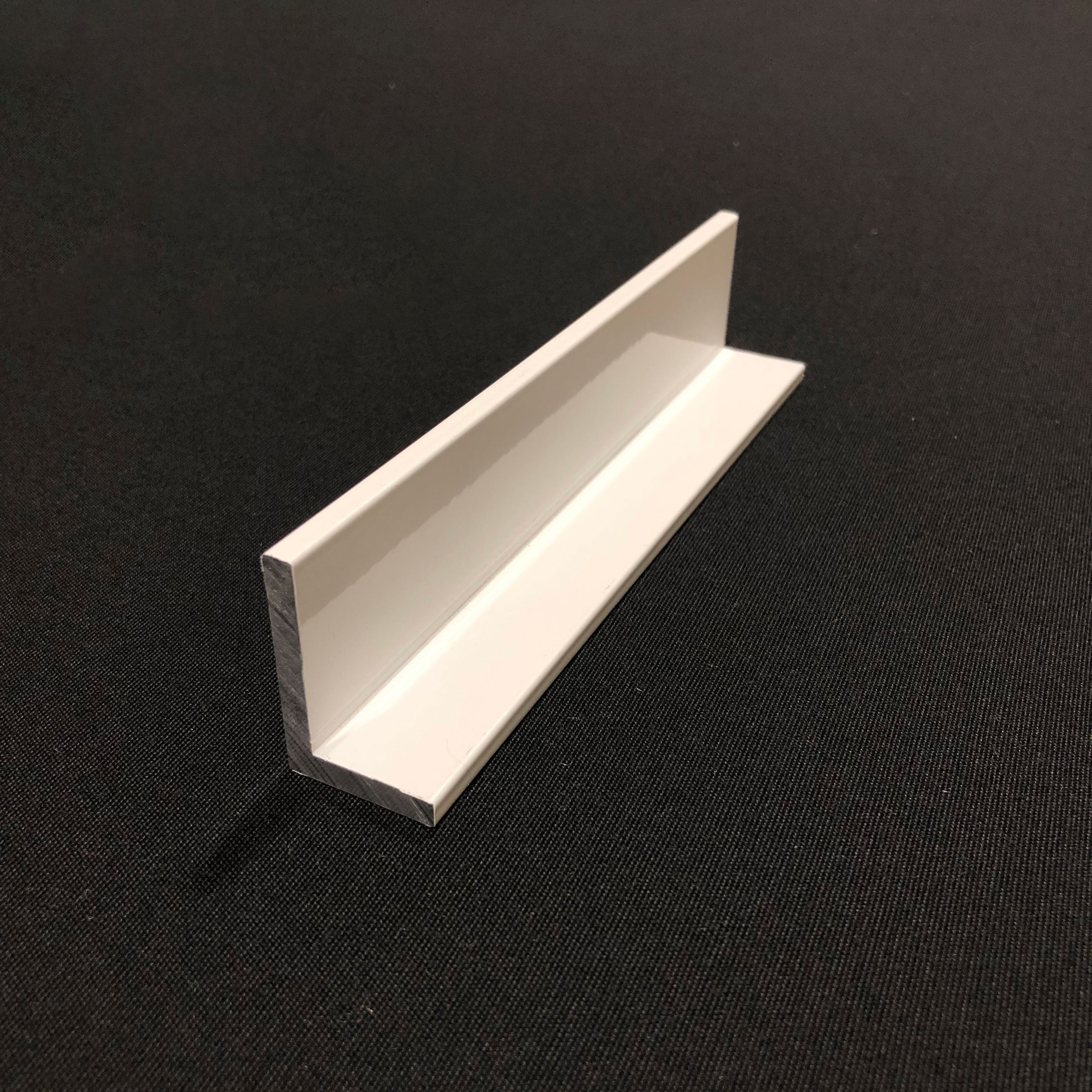

  • STD Inside Mount "L" Angle

    For Inside Mount

    This component is typically used for inside mounts when the side walls are uneven.

    • Description: Powder-coated, color-matching aluminum material shaped like an "L". The length runs the entire unit drop
    • Purpose: To make the screen tracks appear plumb (perfectly vertical) when the mounting surfaces are not plumb (i.e., not straight or square).
    • Installation: The "L" angles are mounted to the non-plumb side surfaces first. The tracks are then attached to and through the "L" angle, allowing the tracks to be straightened.
    • Finishing: Matching outdoor caulk is typically used to fill in any resulting gaps.

Motor Controls

  • Single Channel Remote

    Indoor-rated handheld remote that operates a single screen or multiple screens simultaneously within a 50 ft range. Compact and easy to use, this controller is ideal for single-zone operation. Store indoors away from weather exposure.

  • 5 Channel Remote

    Indoor-rated handheld remote designed to control up to five individual screens or groups. Create custom “scenes” for everyday convenience, such as:

    • Channel 1: All screens
    • Channel 2: Only Screen 1
    • Channel 3: All west-facing screens

    Range up to 50 ft. Store indoors away from weather exposure.

  • Outdoor Rated Single Channel Remote

    Weather-resistant remote suitable for outdoor use. Controls a single screen or multiple screens at once within a 50 ft range. Can be left outside or stored indoors when not in use.

  • Outdoor Rated 5 Channel Remote

    Weather-resistant multi-channel remote that controls up to five screens or screen groups independently. Ideal for patio or pool areas where multiple screens may be used. Allows for preset “scene” control similar to the indoor version.

  • Indoor Mounted Wireless Single Channel Wall Switch

    A fixed, wall-mounted single channel switch installed indoors–no hardwiring or wall cutting required. Functions like a dedicated remote you’ll never misplace. Ideal for easy operation from inside the home.

  • Exterior Rated Wireless 5 Channel Wall Switch

    Weather-resistant version of the multi-channel wall switch. Mount indoors or outdoors, no cutting or wiring required. Offers convenient access to operate up to five screens or grouped zones from a permanent location.

  • Somfy TaHoma Software Interface System

    For complete automation and smart control, the TaHoma interface allows operation of your screens (and other Somfy RTS motorized products) directly from your smartphone or tablet. Using the Somfy app, you can create custom schedules, group commands, and multi-room scenes. Compatible with most home automation systems for seamless integration and hands-free operation.
