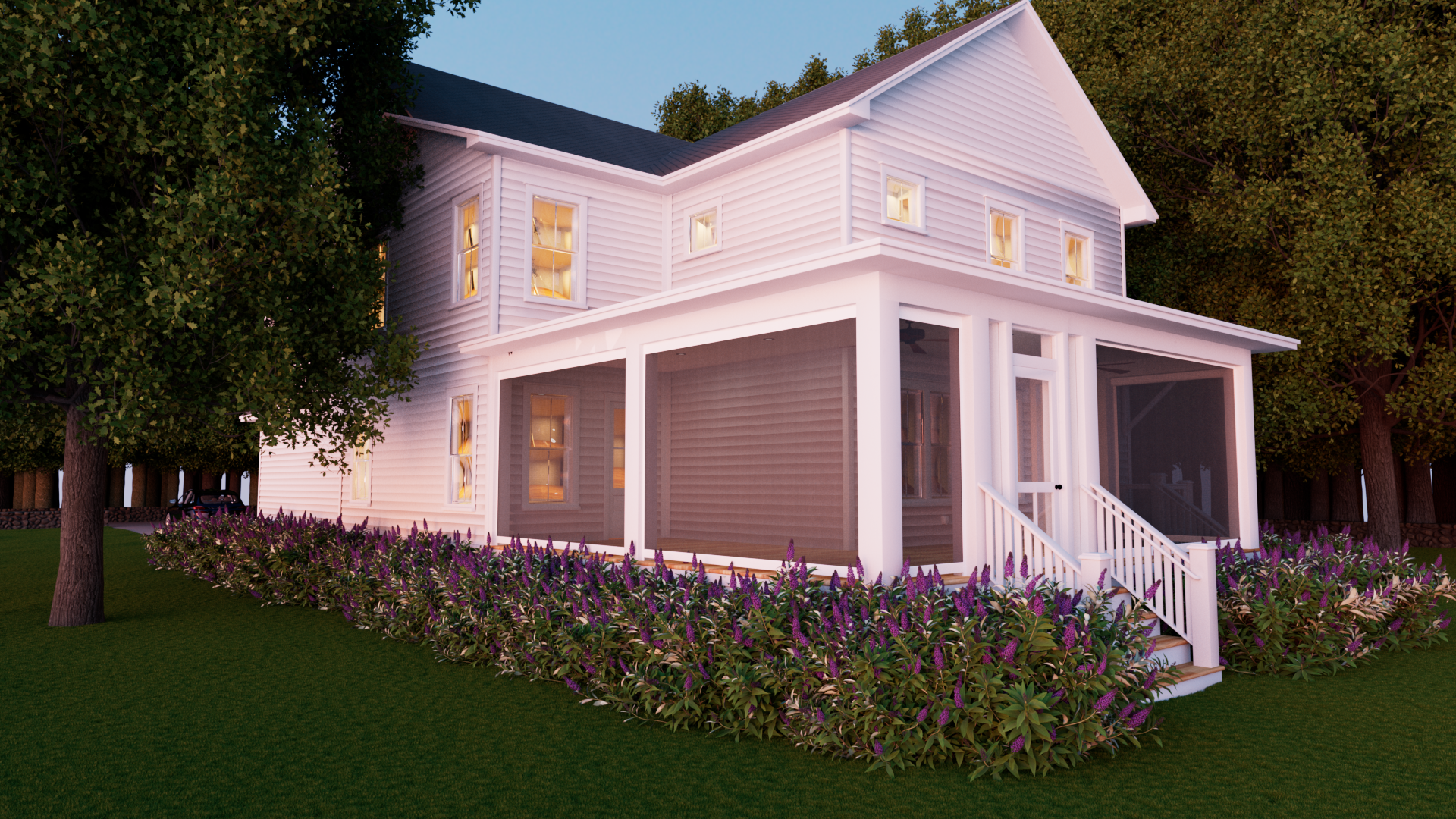

EdgeLock 4000

Insect Control Only:

Vinyl-coated polyester mesh provides durable protection against pests while maintaining visibility. Resistant to water, chemicals, and high temperatures, this fabric is available in black or white with 45% openness–similar to standard window screens. Ideal for insect control only. For enhanced glare or heat reduction, select SunTex® 95 fabric instead.

Insect + Sun Glare, Heat Gain, and Privacy Control:

SunTex® 95 features a full basketweave, vinyl-coated polyester construction that blocks up to 95% of UV rays, helping to reduce glare, heat, and fading. Lightweight yet strong, it’s easy to clean and ideal for exterior roller systems requiring wide-width material.

Width refers to the total end-to-end measurement of the unit, made to the nearest 1/8”.

Surface Mount:

For wall-mounted installations, measure your opening width and add at least 4" (adding 6" is common) to allow room for sidetrack mounting and proper coverage. This ensures the screen clears the opening and the sidetracks can be securely mounted.

Inside/Recessed Mount:

For installations inside an opening or frame, measure the width at the top, middle, and bottom of the space. Use the narrowest measurement of the three. The unit will be made 1/8" narrower than ordered to allow for smooth fitting and adjustment.

Drop is measured from the top of the cassette box to the bottom of the hem bar.

Surface Mount:

Add at least 7" to your opening height to accommodate the cassette box and allow the 2" hem bar to clear the opening when fully retracted–preserving your view.

Inside Mount:

Measure the total space from the bottom of the header/opening to the floor. Note that installation will reduce overhead clearance by approximately 5" (cassette) and an additional 2" when the hem bar is fully retracted.

All visible aluminum components–including the housing/cassette, sidetracks, and hem bar–are powder-coated. Choose from the available standard and premium finishes to match your exterior design.

How you will operate your screen(s).

Manual Gear:

Operate the screen using a removable hand crank. Simply turn the handle to extend or retract the fabric.

Shading Direct Motor:

Press a button on the remote or wireless wall switch for smooth, automatic extension and retraction. The motor stops automatically at full positions.

• 5-year warranty
• 110V, 3-wire motor (2.1A max)
• Includes 10' power cord (can be plugged in or hardwired)

Note: This is a premium-grade motor, not a low-cost import.

Somfy® Maestria Motor (Upgrade):

A top-tier tubular motor offering faster operation and obstacle detection for added safety.

• 8-year warranty
• UL listed, 110V, 3-wire motor (2.1A max)
• Includes 10' power cord (can be plugged in or hardwired)

Learn more: Somfy Maestria RTS Brochure

Single Channel Remote:

Indoor-rated handheld remote that operates a single screen or multiple screens simultaneously within a 50 ft range. Compact and easy to use, this controller is ideal for single-zone operation. Store indoors away from weather exposure.

5 Channel Remote:

Indoor-rated handheld remote designed to control up to five individual screens or groups. Create custom “scenes” for everyday convenience, such as:

• Channel 1: All screens
• Channel 2: Only Screen 1
• Channel 3: All west-facing screens

Range up to 50 ft. Store indoors away from weather exposure.

Outdoor Single Channel Remote:

Weather-resistant remote suitable for outdoor use. Controls a single screen or multiple screens at once within a 50 ft range. Can be left outside or stored indoors when not in use.

Outdoor Rated 5 Channel Remote:

Weather-resistant multi-channel remote that controls up to five screens or screen groups independently. Ideal for patio or pool areas where multiple screens may be used. Allows for preset “scene” control similar to the indoor version.

Indoor Mounted Wireless SIngle Channel Wall Switch

A fixed, wall-mounted single channel switch installed indoors–no hardwiring or wall cutting required. Functions like a dedicated remote you’ll never misplace. Ideal for easy operation from inside the home.

Exterior Rated Wireless 5 Channel Wall Switch

Weather-resistant version of the multi-channel wall switch. Mount indoors or outdoors, no cutting or wiring required. Offers convenient access to operate up to five screens or grouped zones from a permanent location.

Somfy TaHoma Software Interface System

For complete automation and smart control, the TaHoma interface allows operation of your screens (and other Somfy RTS motorized products) directly from your smartphone or tablet. Using the Somfy app, you can create custom schedules, group commands, and multi-room scenes. Compatible with most home automation systems for seamless integration and hands-free operation.

The motor or manual gear can be positioned on either side of the unit. “Right” and “Left” are determined when facing the unit from the front (cassette opening side).

For inside mounts, note that reversing the orientation (cassette facing inward) also reverses the drive side. If ordered incorrectly, it can be adjusted before installation.

Choose the preferred location for the power cord based on your home’s setup.

• Out the Top: Cord exits near the drive side, ideal for overhead wiring.
• Out the Back: Cord exits behind the cassette, about 1" from the drive side.
• Custom (None): Choose to drill your own exit location (top, back, or side). Some homeowners route the cord down the sidetrack toward the power source.
